Heavy-duty integrated machine with extra-large size, chain feeding, one-pass printing and rotary die-cutting, durable and easy to operate.
Product Detail
Key Features:
Heavy-duty integrated machine with extra-large size, chain feeding, one-pass printing and rotary die-cutting, durable and easy to operate.
Application:
Mass production of extra-large boxes for furniture, bathroom, large home appliances, engineering machinery and heavy logistics packaging.
Core Structure:

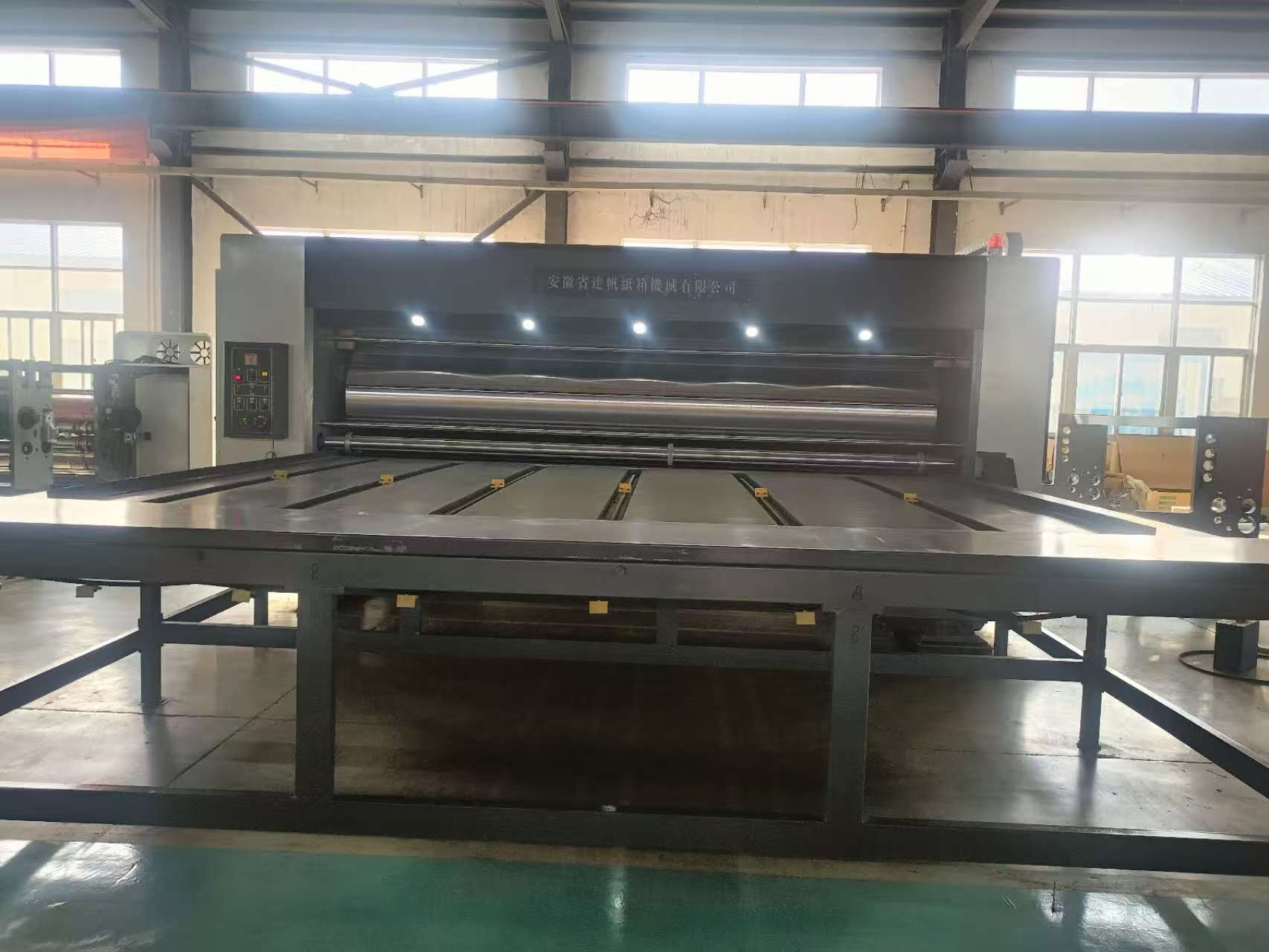

Feeding Unit：
Chain feeding, suitable for heavy-duty and large-sized carton boards.

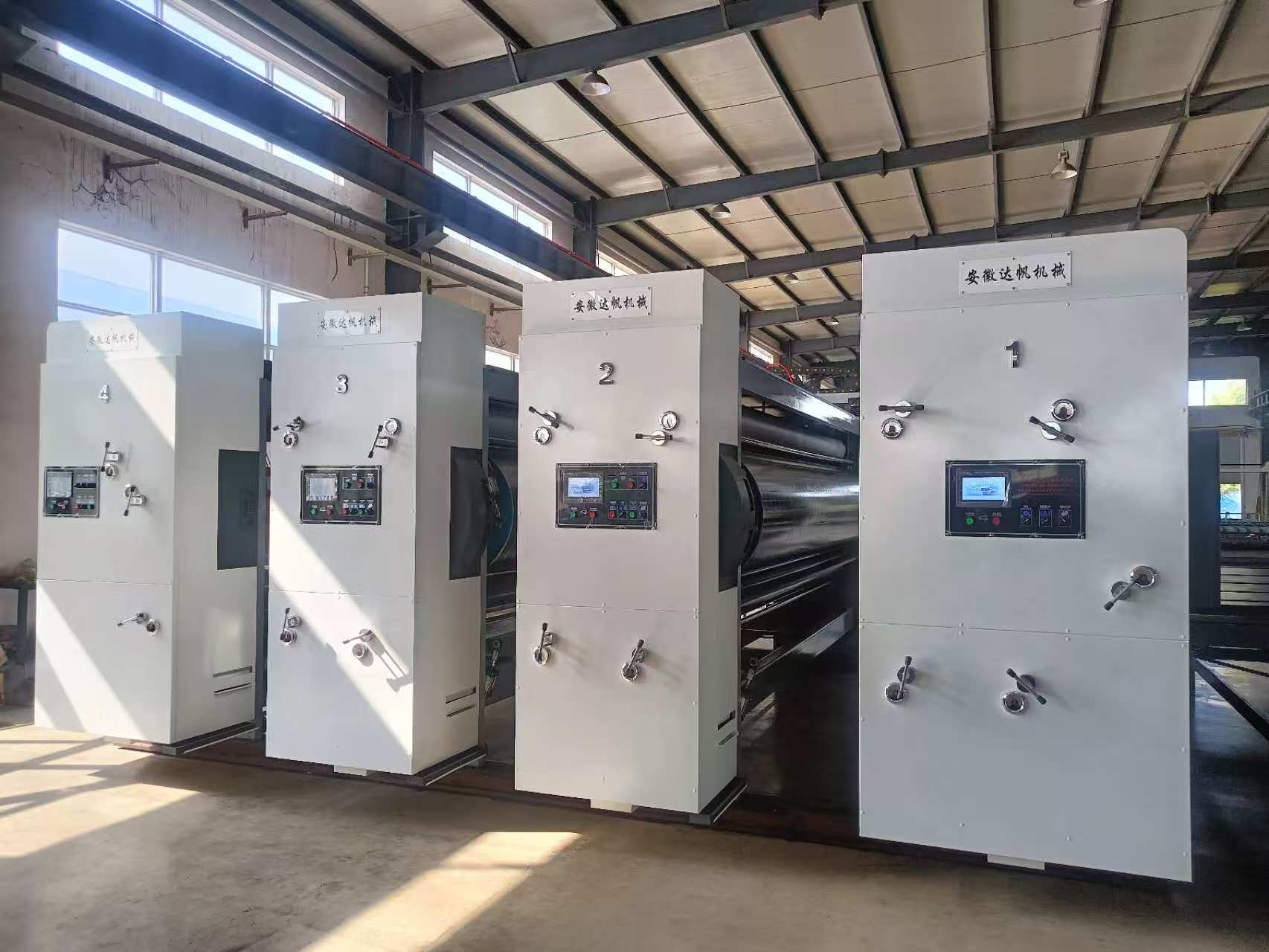

Printing Section：
1.The whole machine adopts double-layer covers. The inner cover is welded with 6mm and 10mm steel plates. Double worm gear boxes are used for clearance adjustment of the whole machine.
2.Equipped with brake motor and encoder, featuring fast and accurate adjustment. 360° forward and reverse phase adjustment is available during operation and stop.
3.The phase is controlled by a 7-inch LCD screen.

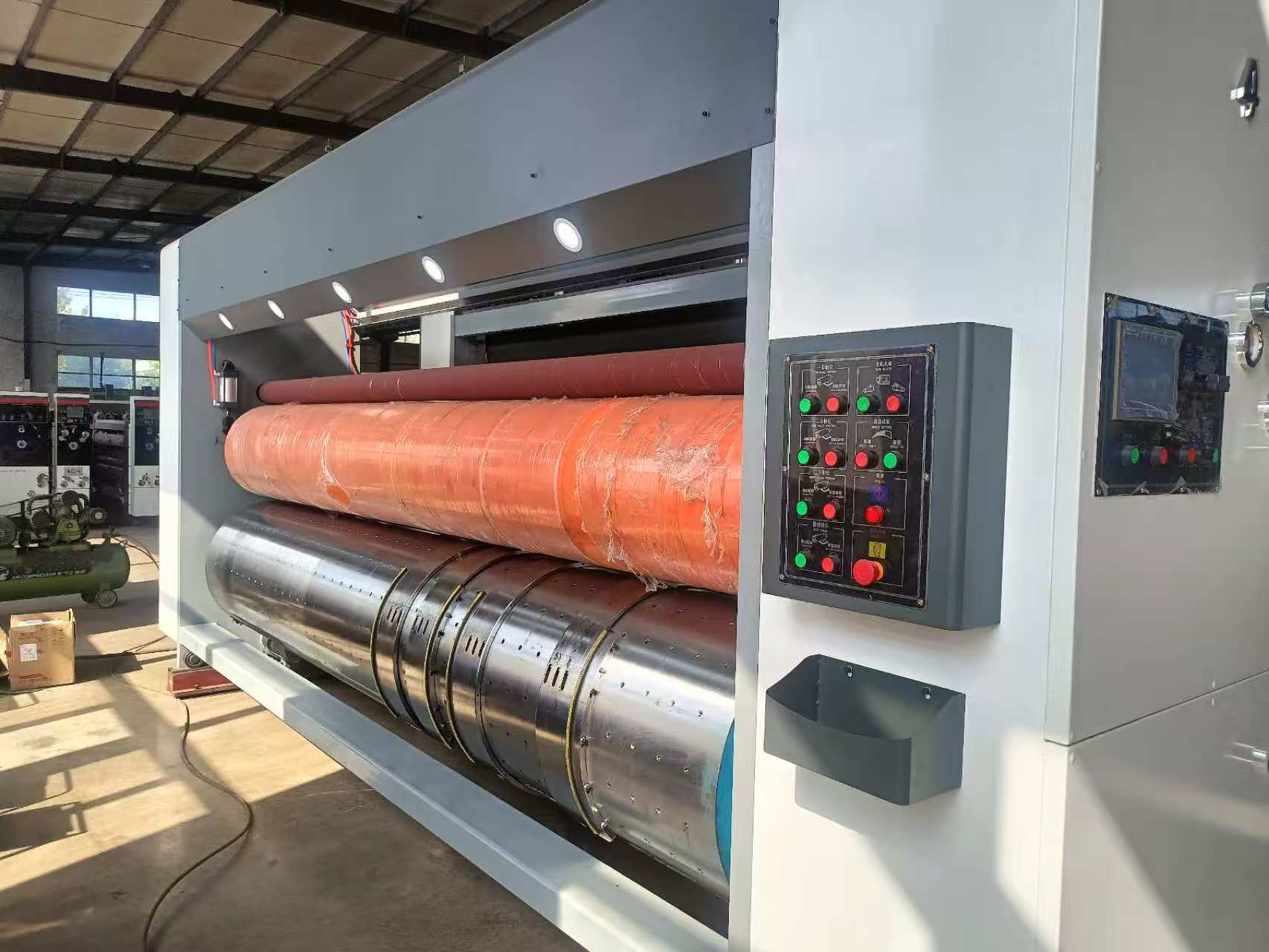

Rotary Die-cutting Section (Board-free Slotting Section)：
1.The rubber pad has an automatic axial movement function, with 20mm left and right axial movement respectively, improving the utilization rate of the rubber pad.
2.Electric planetary gear die-cutting phase adjustment, keyless connection.

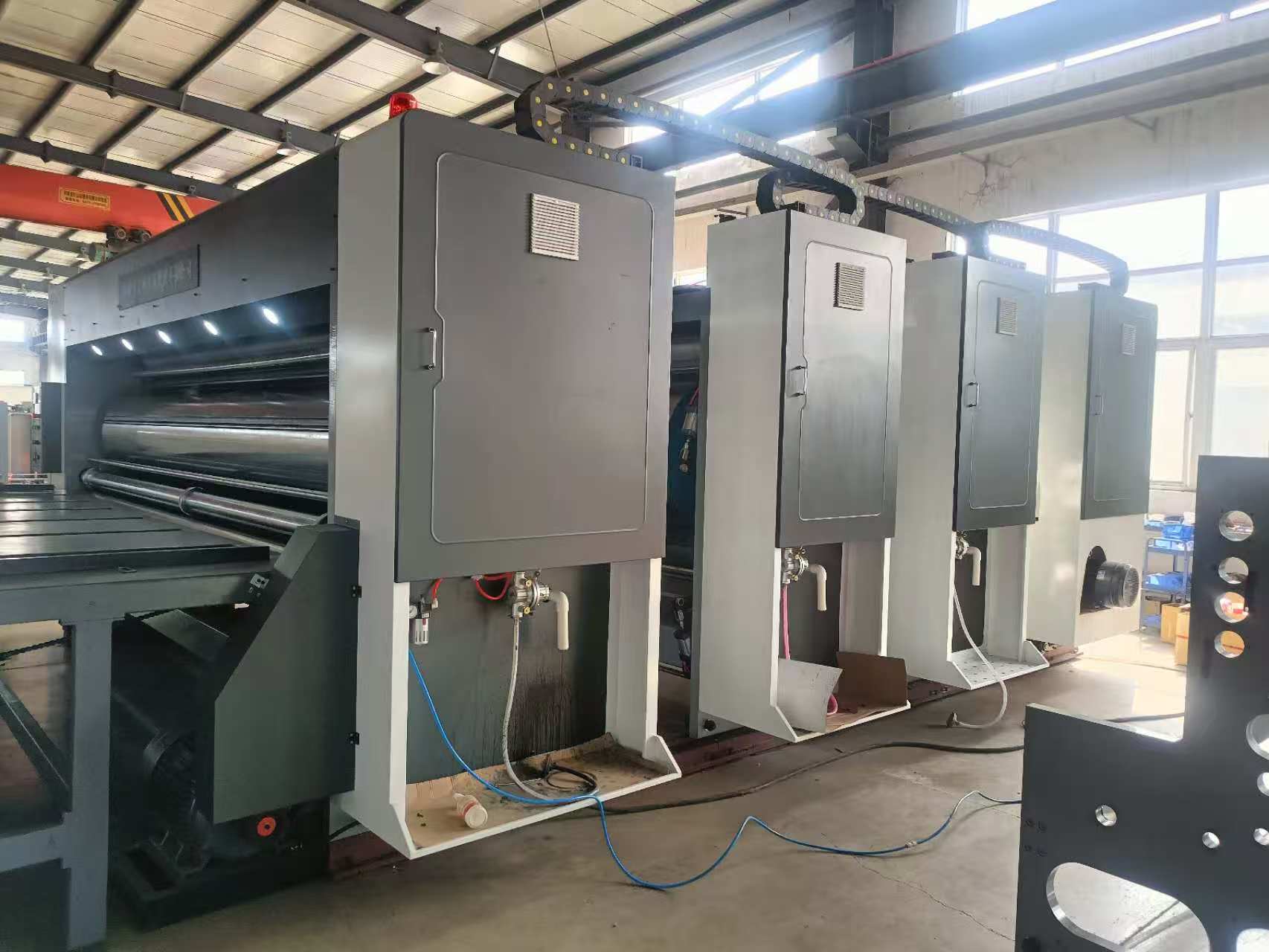

Inking Unit：
The inking unit evenly applies ink to the printing plates, ensuring clear and consistent printing on carton surfaces.
Parameter:
| DF-4500×800 Chain Feed Printing & Rotary Die-Cutting Machine | ||
| Color | Two-Color | Three-Color |
| Speed（pieces/min） | 30/min. | 30/min. |
| Max. Paper Size | 4500×2500mm | |
| Min. Paper Size | 780×700mm | |
| Max. Printing Size | 4500×2500mm | |
| Max. Die-cutting Size | 4600×2500mm | |
| Min. Slotting Size | 140×60mm | |
| Overall Dimensions | L:8m，W:5.2m | L:10m，W:5.2m |
| Weight | 21t | 27t |
| Suitable Printing Thickness | 4-9mm | |
| Suitable Board Thickness | 1.5-15mm | |
Video:
Application Scenarios :
FAQ:
-
What are the functions of a large carton chain machine?
It adopts chain feeding, suitable for heavy and large cartons, realizing automatic feeding, printing, die-cutting and forming efficiently and stably.
